Description

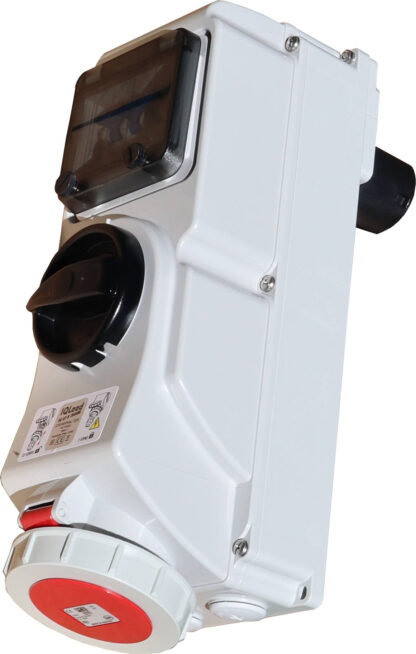

Introducing our Construction & Event Power Adapter, designed to provide safe, reliable, and versatile power in public and private environments that feature EVSE’s (Electric vehicle Chargers). Whether you need to run heavy-duty equipment or power an event setup this adapter is your flexible power solution.
- High-Power Performance: Supports 5-pin CEE connections at 400V/230V, delivering up to 11kW.
- Current Configuration: 16A – 11kW .
- Enhanced Safety: RCD (Type A, B curve) and overcurrent protection.

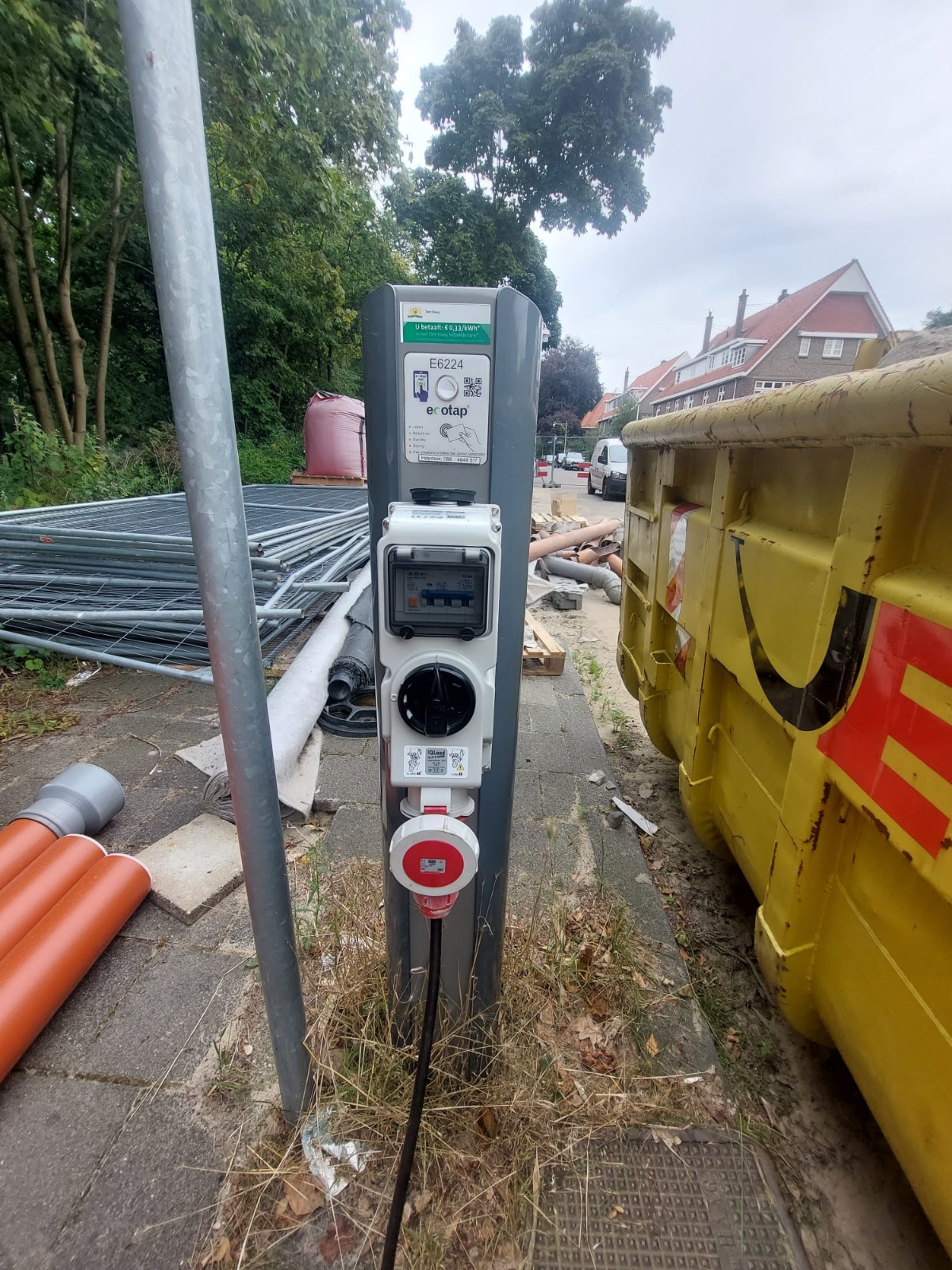

- Rugged & Reliable: Engineered for construction sites, festivals, and other temporary or mobile installations, ensuring durability and hassle-free operation even in challenging conditions.
- Simple Setup: Plug-and-play design makes it easy to connect and power your equipment.
Why Choose This Adapter?

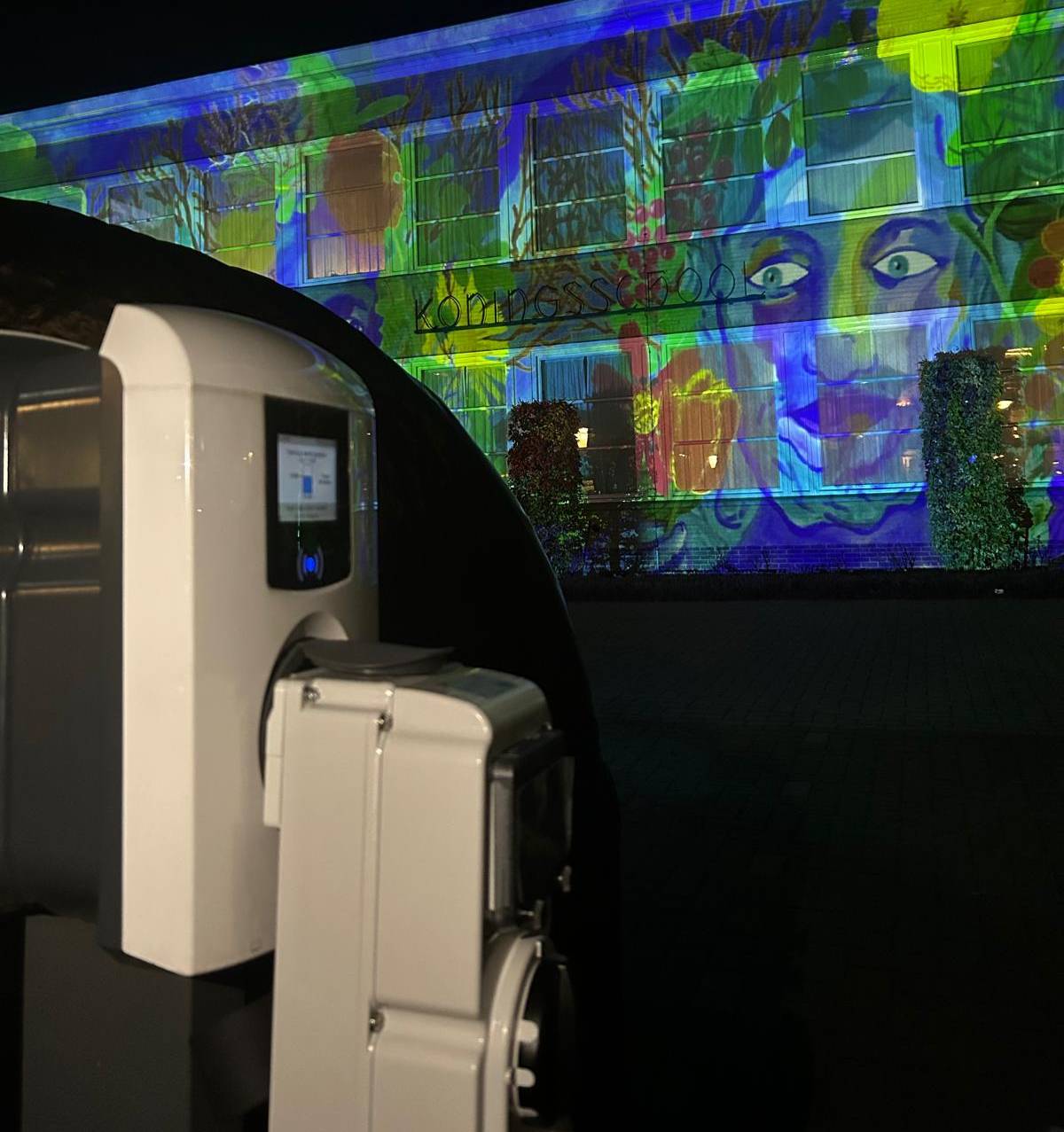

- Versatility: Powers anything with a CEE-5 connection from high-demand tools, batteries, (event) lighting, etc.
- Peace of Mind: Optional in-unit RCD and overcurrent protection keep you covered on locations without dedicated safeguards.

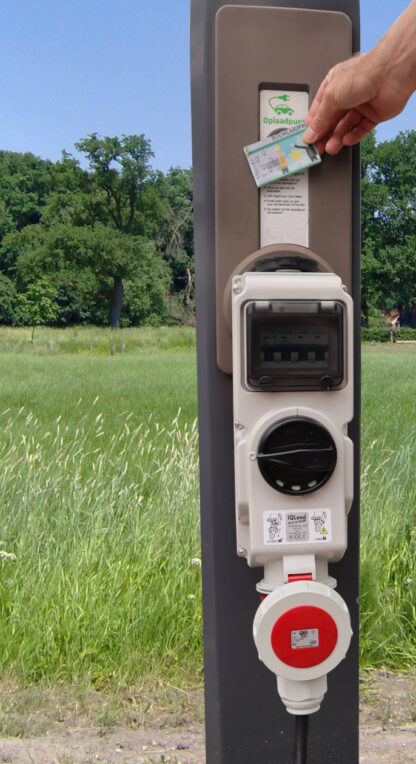

- Safety: The adapter is locked by the charge point. The CEE5 plug is interlocked in the housing while voltage is supplied.
Netherlands:
- Public charge point: The grid connection is limited to 25A and the charger has 2 outlet sockets (type 2). Older charge points supply only 16A per socket and reduce power to 12.5A when both sockets are connected. Most newer charge points supply 25A per socket and reduce the current dynamically based on the current load of the other socket.
- Private charge point: Mostly feature 1 type 2 socket at 16A.
- Semi Public charge point: No rule of thumb apply. Check the responsible Person in Charge of the Installation (Installatie verantwoordelijke).
